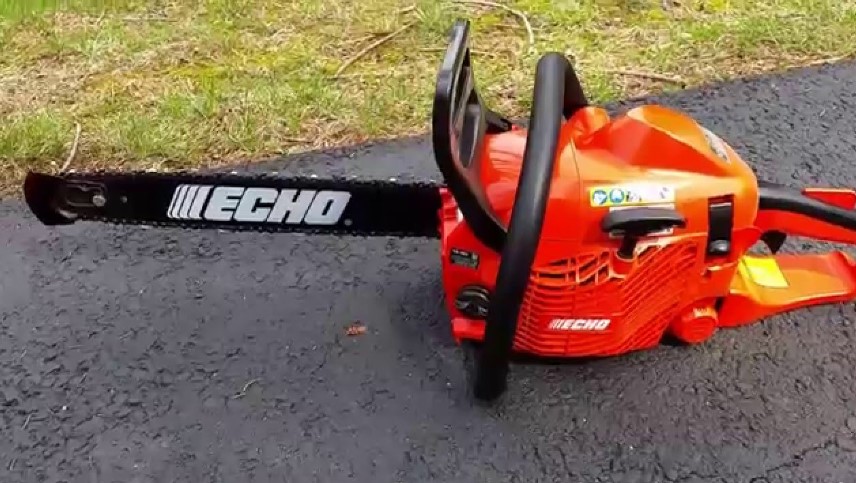

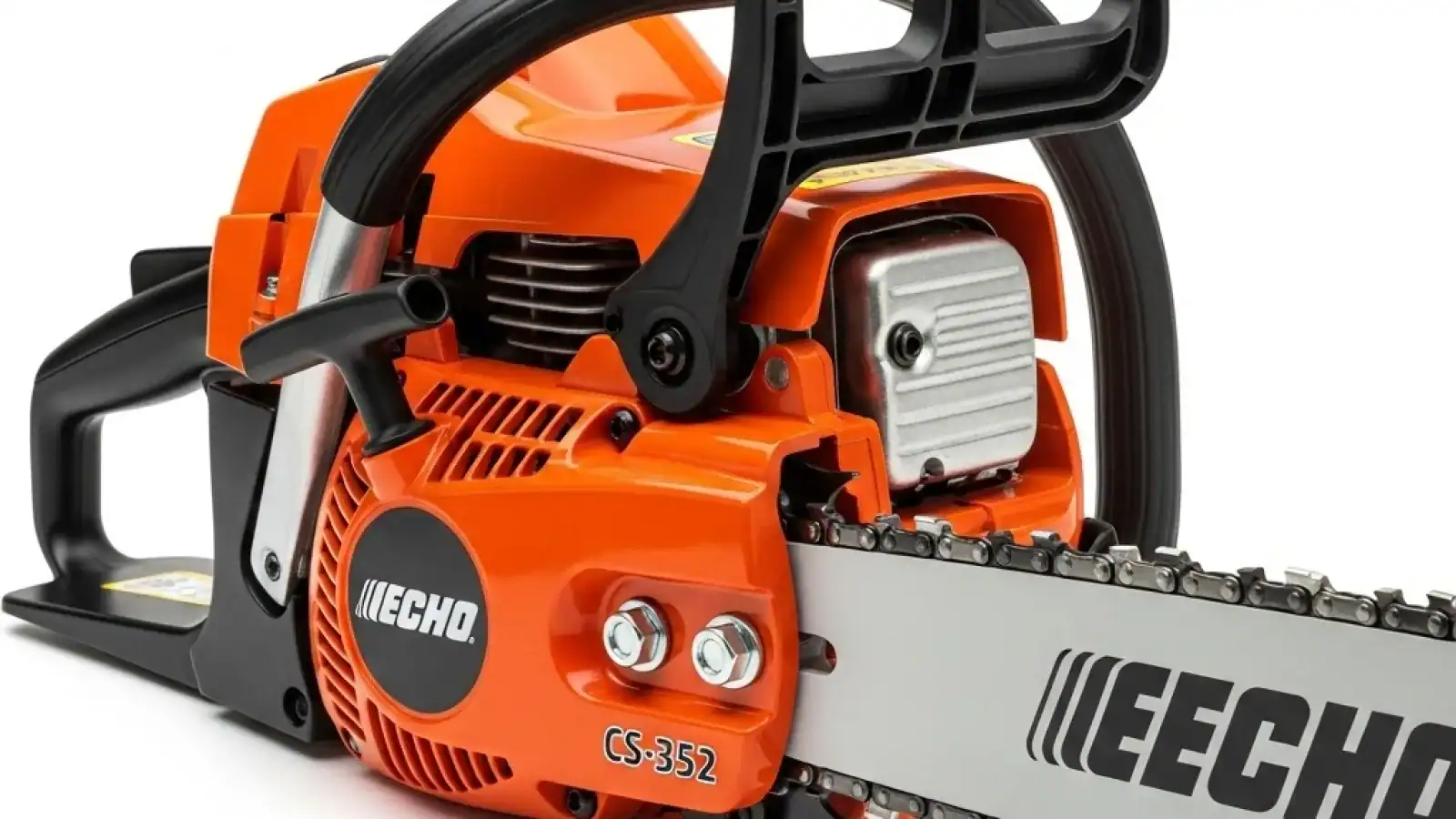

Finding a light, maneuverable gas chainsaw that starts easily without killing your shoulder after twenty pulls is a priority for anyone maintaining trees or cleanup around a acreage. The Echo CS-352 sits right at the intersection of nimble ergonomics and commercial-grade two-stroke engine building. It is designed specifically to take the strain out of high-reach limbing, fence line clearing, storm debris management, and basic firewood bucking.

Quick answer: The Echo CS-352 is an exceptional 34.0 cc entry-to-mid level gas chainsaw weighing just 8.8 pounds, making it one of the most reliable and comfortable saws for limbing, pruning, and light bucking. Armed with an easy-starting i-30 tension mechanism and a standard 16-inch bar, it delivers commercial-grade Japanese engineering at a friendly price point for homeowners and landowners.

Engineering and Build Quality: What Makes the CS-352 Tick?

Underneath the high-impact plastic housing, the Echo CS-352 relies on a professional-grade 34.0 cc Power Boost Vortex engine. Echo manufactures its powerheads with precision-machined cylinders and a chrome plating process that noticeably resists scuffing even during hot summer cutting sessions. Utilizing a digital ignition timing system, the engine delivers instantaneous throttle response while maintaining consistent idle speeds. This prevents the annoying engine stalling often seen on budget saws when transitioning quickly from idle to wide-open throttle. Starting a cold gas saw is traditionally where most DIY operators run into frustrating flood conditions. Echo addresses this issue with their proprietary i-30 starting system, which reduces the pulling force required on the recoil rope by nearly 30 percent. Combined with a purge bulb and a simple automotive-style choke lever, the saw typically fires up in two or three lazy pulls. You do not need to yank hard or brace the rear handle with full body weight to turn the crankshaft over.
FeatureSpecificationUser Benefit
Engine Displacement34.0 cc (2.08 cu. in.)Professional-grade power for fast, clean cuts in medium-sized wood.
Dry Weight8.8 lbs (4.0 kg)Exceptional power-to-weight ratio, reducing fatigue during extended limbing.
Starting Systemi-30™ StarterReduces starting effort by up to 30%, making it far easier than older gas models.
Ignition SystemDigitalEnsures a hot spark and reliable starts, cold or warm.
Standard Bar Length16 inches (40 cm)Ideal length for general yard work and processing logs up to about 12-14 inches.
Oiling SystemAutomatic, Clutch-DrivenReduces oil consumption as the oiler stops when the chain is idle.
Warranty5-Year Consumer / 1-Year CommercialIndustry-leading warranty reflects confidence in build quality.
The saw weighs an impressive 8.8 pounds dry (without fuel, bar, and chain installed), giving it a remarkable power-to-weight dynamic. Power head balance is centered right beneath the main top handle, which keeps the nose of the guide bar from dipping naturally during horizontal work. The vibration damping setup uses well-tuned rubber isolation mounts that effectively separate the engine block from the front handle, saving your palms and wrist joints from numbness during prolonged use.
Specification Parameter Echo CS-352 Technical Measurement
Engine Displacement 34.0 cc (2.07 cu. in.)
Dry Weight (Powerhead Only) 8.8 lbs (4.0 kg)
Fuel Tank Capacity 8.5 fl. oz. (250 ml)
Oil Tank Capacity 8.8 fl. oz. (260 ml)
Standard Bar Length 16 inches (40 cm)
Chain Pitch & Gauge 3/8" Low Profile (LP), .050" gauge
Fuel Mix Ratio 50:1 ratio (2-stroke ISO-L-EGD / JASO FD rated oil)

Real-World Performance: Limbing, Pruning, and Backyard Firewood

In actual cutting conditions, the CS-352 operates far above its nominal horsepower rating when paired with sharp, proper cutting gear. When trimming fallen oak branches or limbing evergreen limbs ranging from 2 to 6 inches in diameter, the high chain speed zips through wood fibers without binding or dropping engine RPMs. The narrow body casing allows you to maneuver the bar deep into thick brush piles without catching plastic edges on adjacent limbs. When tackling larger firewood bucking duties, realistic expectations are key to getting high productivity out of a 34cc motor. The saw will happily cut through softwoods like pine or poplars up to 12 inches in diameter all afternoon. If you are burying the full 16-inch guide bar into seasoned green hardwood like hickory or white oak, let the saw's engine speed do the work rather than leaning heavy muscle into the front handle. Forcing the dogs into the log will stall the clutch drum, whereas steady, moderate pressure yields clean, consistent wood chips.

Pro tip: New operators often fall into the trap of over-tightening the chain tension adjustment bolt on new guide bars. A brand new chain stretches noticeably within its first 15 minutes of operation under load. Check your chain sag every time you fill up the fuel tank. When pulling up on the bottom of the chain, the drive tangs should clear the bar rails slightly but spring right back flush against the underside when released. Running a dry or tightly bound chain on this model will quickly burn through the spur sprocket and sap useful engine power.

Safety remains a central design priority on the CS-352. The saw features an inertia-activated chain brake that instantly halts chain rotation in fractions of a second during a severe kickback event. Coupled with a metal chain catcher pin beneath the sprocket cover, the machine offers full modern protection for both novice homeowners and seasoned arborists using this unit as a ground cleanup saw.

Bar, Chain Specs, and Replacement Buying Guide

Selecting correct replacement cutting attachments is vital for preserving the cutting geometry and engine longevity of your CS-352. The factory package ships with a standard 16-inch laminated guide bar mated to a low-profile chain chassis. Using heavier full-profile 3/8-inch or .325-inch pitch pitch setups will severely overload the 34cc clutch assembly and is not recommended. The standardized chain dimensions for the stock 16-inch bar configuration break down as follows:
  • Chain Pitch: 3/8-inch Low Profile (LP)
  • Drive Gauge: .050-inch (1.3 mm)
  • Drive Link Count: 57 links
  • File Size for Sharpening: 5/32-inch (4.0 mm) round file
If you prefer operating with maximum power density on smaller fruit trees, you can easily downsize the guide bar to a 12-inch or 14-inch bar length. A 14-inch bar configuration requires a 52 drive link chain, while a 12-inch setup typically takes 45 drive links. Always verify your current bar's stamped specifications on the tail section near the mounting slot before placing orders for replacement parts. When buying aftermarket chains, look for Oregon 91PXL057G or standard Echo 91PXL57CQ chains. These feature semi-chisel cutting teeth that hold a sharp edge longer when encountering dirt, grit, or thick bark than aggressive full-chisel profiles. Additionally, these chains feature ramped depth gauges that meet ANSI B175.1 standards for reduced kickback, making overhead limb work drastically safer.

Maintenance, Tuning, and Sourcing Parts

Consistent preventive maintenance ensures your CS-352 starts consistently season after season. Gas engine longevity depends almost entirely on proper fuel management. Always mix fresh 89 octanes or higher unleaded gasoline with a high-grade 50:1 two-stroke oil containing fuel stabilizers. Ethanol-blended fuel (E10) degrades quickly inside small carburetor diaphragms; utilizing premixed ethanol-free canned fuels eliminates gummed-up jets and torn metering diaphragms entirely over winter storage. Air filtration on this saw is tool-free and remarkably straightforward. Flipping open the top cylinder cover reveals a heavy-duty, cleanable air filter element. Inspect and brush off fine saw dust after every couple of working hours. If dust slips past a dirty filter, it acts like sandpaper against the piston ring and cylinder wall, leading to loss of engine compression. Follow this brief routine maintenance schedule to ensure optimal operational reliability:
  1. Before every use: Inspect chain brake movement, check chain tension, verify chain oiling function by pointing the tip toward a piece of light cardboard while revving, and inspect throttle lockout levers.
  2. Every 5 operating hours: Clean the air filter, clean sawdust build-up from under the clutch cover, and rotate the guide bar 180 degrees to equalize rail wear.
  3. Every 25 operating hours: Remove and clean the spark plug (gap set to 0.024-0.028 inches / 0.6-0.7 mm), clean bar groove with a putty knife, clear bar oil inlet holes, and inspect the fuel filter inside the gas tank.
  4. Annually or seasonal storage: Replace spark plug (NGK BPMR8Y), replace fuel filter, inspect starter cord wear, and flush bar oil tank.
Finding OEM or aftermarket parts for the Echo CS-352 is hassle-free thanks to Echo's vast dealer network and standard online parts support. Critical replacement parts including carburetors (Walbro WT series equivalents), clutch assemblies, rim sprockets, oil pumps, and recoil pull cord assemblies are widely available.

Final Recommendation

If you need a bulletproof, lightweight gas chainsaw that delivers painless pull starting, light handling, and dependable durability without breaking the bank, the Echo CS-352 is one of the smartest investments on the market today. For homeowners clearing brush, pruning shade trees, or cutting up light firewood loads, stick with the stock 16-inch bar paired with a fresh 50:1 ethanol-free fuel mix and a properly tensioned semi-chisel chain.

Frequently Asked Questions

What gas to oil ratio does the Echo CS-352 use?

The Echo CS-352 runs on a strict 50:1 gas-to-oil mixture ratio. This equals 2.6 fluid ounces of high-quality two-stroke oil per gallon of 89-octane unleaded gasoline. Using synthetic oil rated JASO FD or ISO-L-EGD will minimize carbon deposits and smoke production.

What file size do I need to sharpen the Echo CS-352 chain?

The factory 3/8-inch Low Profile chain requires a standard 5/32-inch (4.0 mm) round saw chain file. Maintain a 30-degree sharpening angle relative to the guide bar and use a depth gauge tool to keep your rakers trimmed to 0.025 inches.

Can I put an 18-inch bar on the Echo CS-352?

While an 18-inch bar might physically bolt onto the mounting studs, it is not recommended. The 34.0 cc engine lacks the oil output and torque required to efficiently pull an 18-inch chain through logs, which will lead to clutch slipping, engine overheating, and premature bar wear.

Why is my Echo CS-352 chain not getting oil?

Oil delivery issues are usually caused by a clogged bar oil hole or sawdust packed beneath the clutch cover rails. Remove the bar and side cover, scrub out the guide bar groove, clear the tiny oil feeder hole near the mounting slot, and confirm you are using clean, dedicated bar and chain oil rather than used motor oil.
