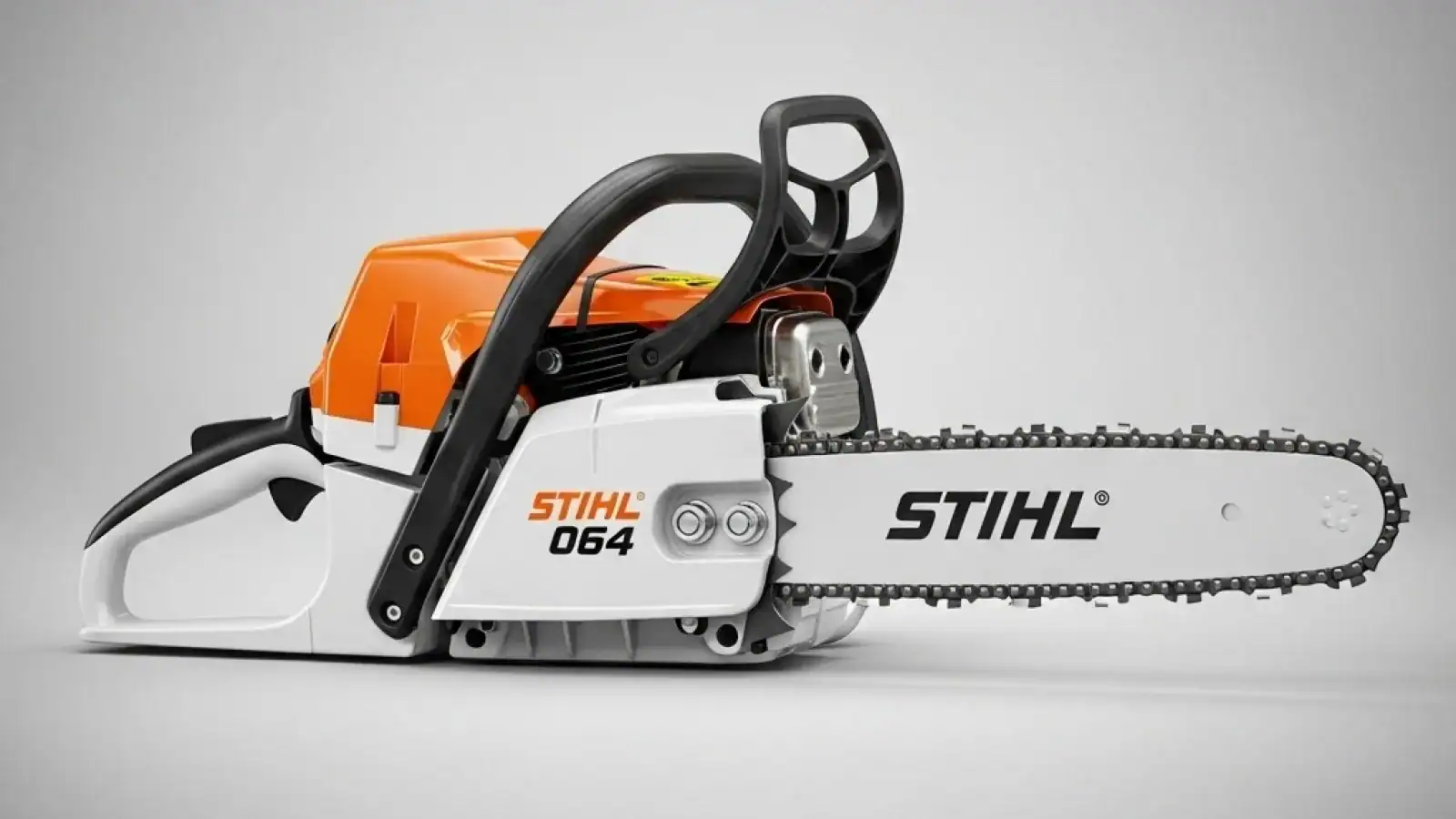

When professional loggers, timber fallers, and chainsaw mill operators talk about legendary powerheads, the Stihl 064 AV always enters the conversation. Produced through the 1980s and 1990s, this German-engineered brute established a benchmark for high-output commercial saws by cramming a massive engine into a remarkably compact frame. If you are felling thick hardwoods, bucking sawlogs, or running a portable Alaskan mill, understanding how the 064 handles, weighs, and performs helps you decide whether this classic saw deserves a place in your shed.
Quick answer: The bare powerhead Stihl 064 weight is exactly 14.5 lbs (6.6 kg) dry. Driven by an 84.9 cc engine producing 6.5 bhp (4.8 kW), it boasts an exceptional power-to-weight ratio that rivals modern 80cc and 90cc professional saws while carrying bar lengths from 20 to 36 inches with ease.
Stihl 064 Weight, Dimensions, and Ergonomics Detailed
Understanding the exact Stihl 064 weight requires looking past the bare powerhead figures printed in old technical manuals. While the bare engine housing weighs a nimble 14.5 lbs (6.6 kg) completely dry—without oil, fuel, or cutting gear—a fully dressed working saw carries a different presence in the hands. Once you add a full 27.7 oz (0.82 L) fuel tank, 11.8 oz (0.35 L) of bar oil, and a standard 28-inch guide bar paired with a 3/8" pitch chain, the total operating weight sits right around 20.5 to 21 lbs. This sensible heft makes a world of difference when you are swinging a saw on steep hillside timber stands for eight hours straight.
The secret behind the low Stihl 064 dry weight lies in its pressure-die-cast magnesium crankcase. Stihl engineers engineered a split-casing design that shaved off critical ounces without sacrificing structural rigidity or torsional stiffness. When leaning into a long cut with a 32-inch bar, the crankcase resists flexing, keeping the crank bearings aligned and preventing binding. Compared to older heavy-duty saws like the 075 or 051 that routinely tipped the scales at 18 to 20 pounds for the powerhead alone, the 064 delivered upper-tier falling power in a 70cc-class body frame.
Ergonomically, the 064 remains remarkably well-balanced. The center of gravity sits directly beneath the wrap-around aluminum handlebar, allowing operators to pivot the saw easily during limbing operations or horizontal felling cuts. Vibration damping is handled by heavy-duty rubber annular buffers. While these rubber mounts transfer slightly more harmonic buzzing to the operator's wrists than the modern steel spring anti-vibration systems used on current models like the MS 661 C-M, they are rugged, cheap to replace, and effectively cushion harsh impacts during deep bucking work.
Stihl 064 Specs and Mechanical Engineering
At the heart of the Stihl 064 sits an 84.9 cc single-cylinder two-stroke engine designed to deliver sustained torque under heavy loads. Featuring a 52 mm cylinder bore and a 40 mm piston stroke, the engine revs up to a maximum governed speed of roughly 13,000 RPM, with maximum power peak landing right around 9,500 RPM. The internal cylinder wall features a durable Nikasil (nickel-silicon carbide) coating, which minimizes piston friction, aids rapid heat transfer, and prevents cylinder scuffing under brutal duty cycles.
Fuel delivery across the 064 production run relied on fully adjustable commercial carburetors, predominantly the Tillotson HT series or Walbro WJ models. These all-mechanical carburetors give mechanics full manual control over the High (H), Low (L), and Idle mixture screws. Unlike modern M-Tronic or AutoTune saws governed by microprocessors, a seasoned user can tune an 064 carburetor using a simple carb screwdriver to account for high-altitude logging or winter temperature swings directly in the woods.
| Specification Feature | Technical Data / Measurement |
|---|---|
| Engine Displacement | 84.9 cc (5.18 cu. in.) |
| Cylinder Bore & Stroke | 52 mm Bore x 40 mm Stroke |
| Maximum Engine Power | 6.5 bhp (4.8 kW) @ 9,500 RPM |
| Powerhead Dry Weight | 14.5 lbs (6.6 kg) |
| Power-to-Weight Ratio | 0.45 hp / lb (0.72 kW / kg) |
| Recommended guide bar Lengths | 20" to 36" (50 cm to 90 cm) |
| Standard Chain Pitch & Gauge | 3/8" or .404" Pitch / .050" or .063" Gauge |
| Fuel Mix Ratio & Capacity | 50:1 (Unleaded Gas / Synthetic 2-Cycle Oil) / 27.7 fl oz |
| Bar Lubrication System | Automatic Clutch-Driven Adjustable Oil Pump / 11.8 fl oz |
Stihl 064 Weight vs 066, MS 660, and MS 661 Comparisons
When evaluating the Stihl 064, users frequently compare its weight and performance against its immediate successor, the Stihl 066 (and its modern descendants, the MS 660 and MS 661). The 064 served as the structural baseline for the 066. Stihl enlarged the cylinder bore on the 066 to reach 91.6 cc, which boosted horsepower up to 7.2 bhp. However, that extra displacement came at the expense of added weight, pushing the bare powerhead up to roughly 16.1 lbs (7.3 kg).
For timber cutters who spend all day walking steep block lines, that 1.6 lb difference between the Stihl 064 weight and the 066 weight is significant. The 064 offers a nimbler, faster-accelerating feel that excels when pulling 24 to 28-inch bars, whereas the 066 and MS 660 shine when pulling 36-inch or longer bars continuously through dense hardwoods. If your daily work does not strictly require a 36-inch bar, the lighter 064 frame provides plenty of cutting torque while saving your back and shoulders from unnecessary strain.
Pro tip: When working on or buying a vintage Stihl 064, pay close attention to the flywheel and crankcase combination. Early production 064 models used a smaller ignition flywheel and specific crankcase casing. If you ever replace ignition components or the cylinder, ensure your replacement parts match the early-style or late-style crankcase generation, or you will encounter timing and clearance issues.
Real-World Cutting Performance, Milling, and Pros & Cons
Put the Stihl 064 in green timber with a 28-inch bar pushing 3/8" pitch, .063" gauge full-chisel chain, and it pulls with relentless authority. The automatic, clutch-driven oil pump supplies a steady stream of bar lubricant only when the chain is spinning, preventing messy oil leaks while idling. Because the oil output is fully adjustable, you can crank open the flow rate when pulling longer bars or slabbing dense logs on a portable chainsaw mill where heat buildup is extreme.
Running a chainsaw mill requires continuous wide-open throttle under heavy friction, and the 064 handles this stress remarkably well due to its excellent cooling fin surface area and high-volume oiler. However, because these saws are now decades old, prospective buyers must consider several operational advantages and potential drawbacks before making an investment.
- Pro - Unmatched Power-to-Weight Ratio: At 14.5 lbs dry pushing 6.5 horsepower, it rivals modern pro saws in agility and raw cutting punch.
- Pro - Simple Mechanical Reliability: Easy to tune manually, clean, and repair in the field without diagnostic software or specialized electronics.
- Pro - Excellent Parts Compatibility: Shares dozens of interchangeable chassis, clutch, handle, and side-cover parts with the widely available Stihl 066 and MS 660.
- Con - Rubber Anti-Vibration Isolation: Transmits noticeably more engine buzz to the hands than modern spring-isolated chainsaws.
- Con - Age and Wear: Old plastic air filter covers, rubber fuel lines, crank seals, and intake boots degrade over time and require careful inspection for air leaks.
Maintenance Rules and Safe Operating Advice
To keep an 85cc saw operating safely, strict adherence to Personal Protective Equipment (PPE) is mandatory. High-output pro saws can cause severe inertia kickback if the nose of the bar contacts debris. Always operate with heavy-duty chainsaw chaps (rated to stop high-chain-speed commercial saws), steel-toe work boots, eye protection with a mesh face shield, and ear muffs rated for at least 25 dB noise reduction.
Maintaining proper engine health requires running fresh premium unleaded gasoline blended at a strict 50:1 ratio with high-quality full-synthetic two-stroke air-cooled engine oil. Never let fuel mix sit in the tank longer than 30 days without fuel stabilizer. Clean the mesh or fleece air filter after every major work session, and check the chain tension frequently during the initial ten minutes of cutting, as new chains stretch quickly under high engine torque.
For landowners, loggers, or firewood producers seeking a high-horsepower saw, the Stihl 064 remains a stellar choice if you find a clean, well-maintained unit. Match it with a 28-inch guide bar and a sharp full-chisel chain for maximum clearing speed in medium-to-large timber, and always perform a vacuum and pressure check on the crankcase seals to ensure top-tier reliability.
Frequently Asked Questions
What is the exact dry weight of the Stihl 064 chainsaw?
The dry powerhead weight of the Stihl 064 is exactly 14.5 lbs (6.6 kg). When fully equipped with a 28-inch bar, chain, fuel, and bar oil, the total operating weight is approximately 20.5 to 21 lbs.
How many cc and horsepower is a Stihl 064?
The Stihl 064 features an 84.9 cc (5.18 cu. in.) engine displacement that generates 6.5 brake horsepower (4.8 kW) at 9,500 RPM.
What bar lengths can you run on a Stihl 064?
The Stihl 064 handles guide bar lengths ranging from 20 inches up to 36 inches. Its sweet spot for optimal balance and cutting speed is a 24-inch or 28-inch bar running 3/8" pitch chain.
Are parts for the Stihl 064 interchangeable with the Stihl 066 or MS 660?
Yes, many structural parts, including the rewind starter, clutch cover, wrap handles, oil pumps, and side plastics, are interchangeable between the 064, 066, and MS 660. However, internal engine components like pistons, cylinders, and early flywheels have specific differences.
Sources
- STIHL Incorporated Official Technical Documentation
- OSHA Standard 1910.266 - Logging Operations Safety
- Wikipedia - Chainsaw History and Design Specifications
| Model | Engine Size (cc) | Horsepower | Bar Length (inches) | Weight (pounds) | Price |
|---|---|---|---|---|---|
| Stihl 064 | 64.1 | 4.4 | 20 | 14.3 | $699 |
| Husqvarna 460 Rancher | 60.3 | 4.0 | 20 | 13.9 | $599 |
| Echo CS-620SX | 62.3 | 4.0 | 20 | 13.6 | $549 |
