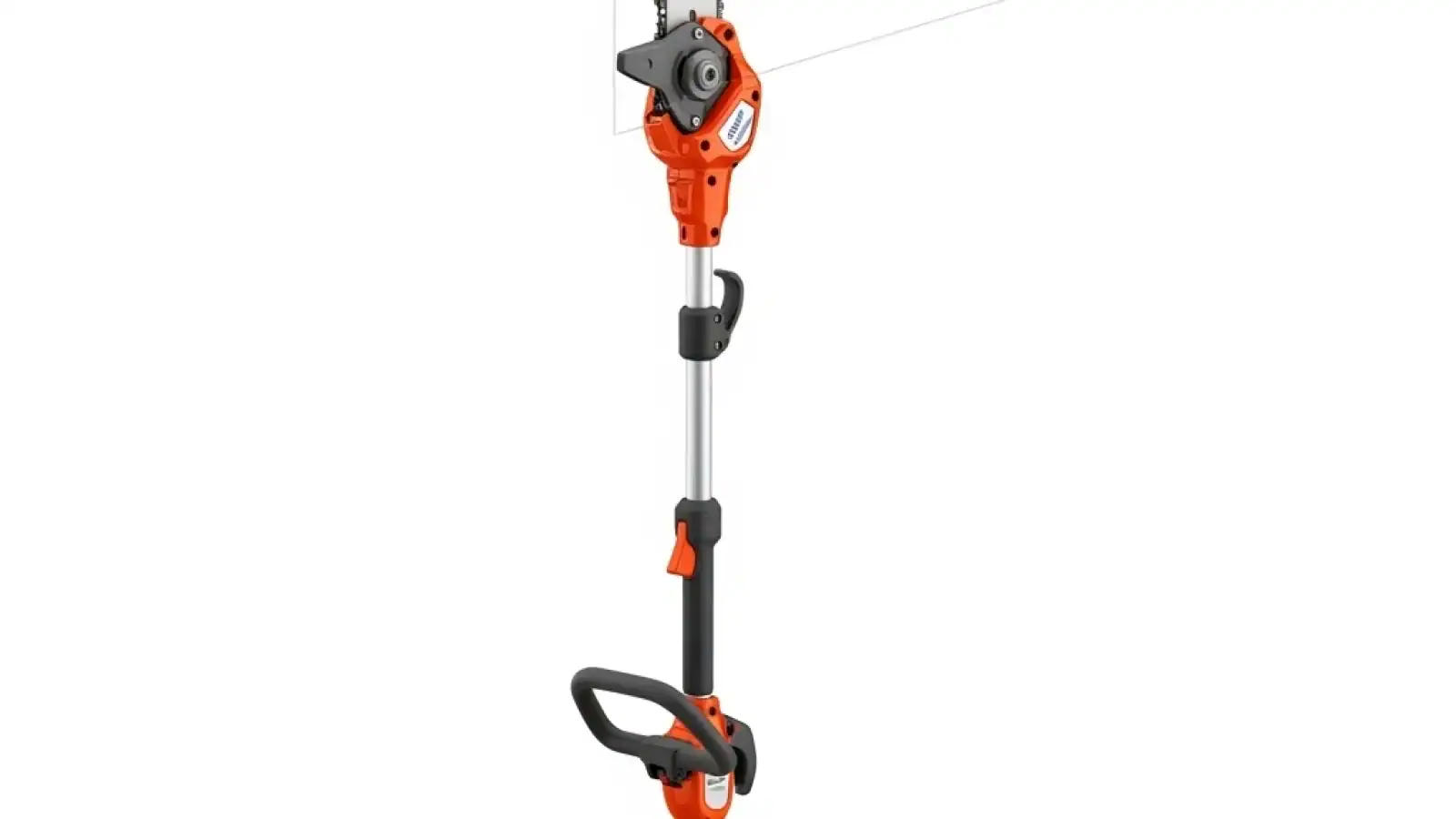

Investing in a dedicated pole saw often feels like overkill if you already own a multi-purpose combi-trimmer powerhead. Husqvarna solved this headache by engineering high-performance pole saw attachments like the PA1100, which click directly into standard split-shaft trimmers. Instead of maintaining another two-stroke engine, storing an extra long tool, or risking a fall on a wobbly ladder, you can convert your everyday string trimmer into an effective tree-pruning rig within seconds.

Quick answer: Husqvarna pole saw attachments (such as the PA1100) turn split-shaft powerheads like the 128LD and 129LK into high-reach pruners with up to 11–15 feet of reach. Operating with a 10-inch bar and a 3/8" Low Profile pitch chain, these attachments provide efficient cutting for branches up to 6 inches thick without requiring a separate engine.

How Husqvarna Combi Pole Saw Attachments Work

The core concept behind Husqvarna’s modular system relies on a solid steel drive shaft housed inside an aluminum tube that connects directly to the powerhead’s female coupler. When you click a pole saw attachment into a unit like the 27.6 cc Husqvarna 128LD or the 27.6 cc 129LK (delivering roughly 1.1 hp / 0.85 kW), the engine's centrifugal clutch transfers rotation directly to the attachment's internal gear drive. The head features an automatic oil pump that meters chain lubricant continuously whenever the throttle lever is engaged, protecting the bar drive link grooves from thermal friction.

The standard attachment model—most notably the PA1100—features a 10-inch guide bar matched with a 3/8" Low Profile (LP) pitch chain running at a .043" or .050" gauge. This thin-kerf configuration requires significantly less horsepower to pull through hardwood, preventing the engine from bogging down during thick cuts. Paired with a standard powerhead shaft, the base length gives you approximately 4.5 feet of tool reach, which translates to an effective working reach of 10 to 11 feet for an average-height operator standing safely on solid ground.

When working on overgrown trees, having the right DIY wood-cutting gear makes a noticeable difference in control and fatigue management. Husqvarna uses a tool-less quick-coupling mechanism with a locking pin and tightening knob. This ensures the attachment will not twist off-axis when you exert upward pressure against a pinched limb or drag the weight of the saw down through a thick oak limb.

Powerhead Compatibility and Model Breakdown

Selecting the right attachment requires understanding the shaft design and mounting system of your powerhead. While Husqvarna design standards are consistent across their residential and commercial split-shaft lines, matching torque output to attachment weight is crucial for balanced operation. Below is a breakdown of how the most common Husqvarna combi-trimmer setups handle pole pruner heads.

Pro tip: Always check your chain tension after the first 5 to 10 minutes of operation on a fresh cutting bar. High-reach pole saws experience rapid thermal expansion in the small pitch chains; if left loose, a .043" gauge chain will throw off the nose sprocket mid-cut, potentially damaging the aluminum drive housing on the head.

For those interested in exploring different pole trimming technologies, exploring pole saw equipment options can help clarify whether a multi-tool shaft system or a dedicated fixed-pole machine suits your property best. Generic attachments often fit loosely, leading to rounded drive splines over time, so staying with genuine attachments preserves engine life.

Model / System Engine Displacement Bar Length Chain Pitch / Gauge Weight (Attachment)
Husqvarna PA1100 (for 128LD / 129LK) 28 cc class (1.1 hp) 10 inches 3/8" LP / .050" 3.1 lbs (1.4 kg)
Husqvarna PAX730 (Commercial 500-Series) 25 cc – 35 cc class 12 inches 3/8" LP / .050" 2.9 lbs (1.3 kg)
Husqvarna EX720 (Extension Shaft) N/A (Shaft only) Adds ~32 inches N/A 1.1 lbs (0.5 kg)

Husqvarna 128LD and 129LK Systems

The 128LD is one of the most widely owned consumer powerheads on the market. Its 28 cc engine provides ample torque for limbs up to 4 or 5 inches thick. The newer 129LK steps up torque response with intuitive starting features like an auto-return stop switch. Both models pair directly with the PA1100 pole saw attachment without adapters or special tools.

Commercial Combi-Systems (525LK and 535LK)

For high-volume landscaping or larger rural land maintenance, Husqvarna’s 500-series multi-tool heads offer magnesium crankcases and higher sustained output. The PAX730 or heavy-duty PA1100 attachments handle larger 12-inch bars on these machines, allowing you to slice through thick hardwoods without overheating the clutch drum during prolonged overhead work.

Can You Use Husqvarna Attachments on Stihl Trimmers?

A common question from equipment owners is whether Husqvarna pole saw attachments fit Stihl KombiSystem powerheads. The simple answer is no. Stihl utilizes a square drive connection and a proprietary receiver diameter, whereas Husqvarna utilizes a splined shaft arrangement with a distinct clamping collar diameter. Attempting to mix brands will ruin the drive shaft splines and void your warranty.

Real-World Cutting Techniques and Reach Optimization

Cutting branches suspended 10 to 15 feet above your head requires strict adherence to proper cutting physics to prevent wood binding and severe bar pinch. Standard chainsaw drop-cutting techniques do not apply when holding a pole saw at a 45-degree angle. Every thick limb should be removed using a classic three-point pruning cut sequence to protect both the tree bark and your equipment.

  • The Undercut (Step 1): Make a small cut on the underside of the limb about 6 to 12 inches away from the tree trunk. Cut upward roughly one-third of the way through the branch diameter. This prevents heavy falling limbs from stripping bark down the side of the trunk.
  • The Top Cut (Step 2): Move 2 to 3 inches farther out on the branch away from the undercut. Cut downward through the top of the limb. As the weight of the branch pulls it down, it will snap cleanly between the two cuts without tearing tree tissues or trapping your guide bar.
  • The Final Stub Trim (Step 3): Make your final flush cut outside the branch bark collar near the main trunk to promote healthy callousing and healing.

When maximum height is required, adding the Husqvarna EX720 shaft extension gives you roughly 32 additional inches of working distance. However, extending the length increases lever arm force. Never use more than one shaft extension with a combi-attachment setup; adding multiple extensions creates flex in the inner drive wire, resulting in rapid drive line failure and poor cutting pressure.

Maintenance, Bar Care, and Troubleshooting

Maintaining a pole pruner attachment is similar to servicing a standard chainsaw, with extra attention paid to drive-shaft lubrication and bar oil delivery. Because the cutting head operates high above the engine, watching oil flow patterns is vital for avoiding dry bar running conditions.

Always fill the attachment’s oil reservoir with clean, high-tack bar and chain oil every time you refill the powerhead's fuel tank (using a strict 50:1 fresh fuel-to-two-stroke oil mix). Check that the small oil passage hole on the guide bar remains clear of compacted sawdust. Inspect the drive coupling end every 10 operating hours and apply high-quality lithium grease to the male splines to prevent oxidation and binding inside the aluminum coupler.

Keep your safety equipment up to standard whenever operating overhead power tools. Always wear hard hats with integrated face shields, safety glasses, anti-vibration gloves, and heavy boots. Even small falling limbs can inflict serious injury from 12 feet up, so never stand directly underneath the branch you are actively cutting.

Recommendations for Property Owners

If you already own a Husqvarna 128LD, 129LK, or 525LK combi-trimmer, buying the PA1100 pole saw attachment is the most cost-effective and space-efficient way to tackle high limbs. Homeowners with standard suburban trees will find the 10-inch bar and 3/8" LP chain ideal for storm cleanup and annual pruning. Ensure you purchase genuine Husqvarna replacement chains, maintain proper 50:1 pre-mix fuel in your powerhead, and run high-tack bar oil to keep your attachment working reliably season after season.

Frequently Asked Questions

What chain size does the Husqvarna PA1100 attachment take?

The standard Husqvarna PA1100 pole saw attachment uses a 10-inch guide bar matched with a 3/8" Low Profile (LP) pitch, .050" gauge chain with 39 drive links (such as Husqvarna H37 or Oregon S39 series).

How high can I reach with a Husqvarna pole saw attachment?

With a standard powerhead and the PA1100 attachment, total tool length is around 8 to 9 feet. Combined with the operator's height and arm reach, this enables safe cutting on branches 11 to 12 feet off the ground. Adding an official EX720 extension increases working reach to around 14 to 15 feet.

Why is my pole saw attachment not oiling the chain?

The most common cause of oiling failure is sawdust blocking the small oil inlet port on the guide bar tail, or a clogged tank vent. Clean the bar groove thoroughly, clear the oil port with a small pick, and ensure you are using proper viscosity bar oil rather than dirty drain oil.

Can I put a larger bar on my Husqvarna pole saw attachment?

It is not recommended to install bars larger than 10 to 12 inches on consumer multi-tool powerheads. Standard 28 cc engines lack the oiler capacity and torque required to flush chips through longer bars, leading to premature clutch wear and chain stalling.
