Understanding the Chainsaw Chain Chassis: Your Guide to Performance and Safety

The term “chainsaw chain chassis” refers to the foundational, non-cutting structure of the saw chain—the components that provide strength, stability, and drive. While not a precise technical term used by manufacturers like STIHL or Husqvarna, it aptly describes the importance of the internal mechanism that determines your saw’s efficiency, durability, and compatibility.

Whether you’re looking for a chainsaw chain chassis replacement or simply trying to decipher a Stihl chainsaw chain size chart, understanding this structure is the first step toward optimizing your cutting performance and ensuring safety.

---

🏗️ The Anatomy of the Chainsaw Chain Chassis

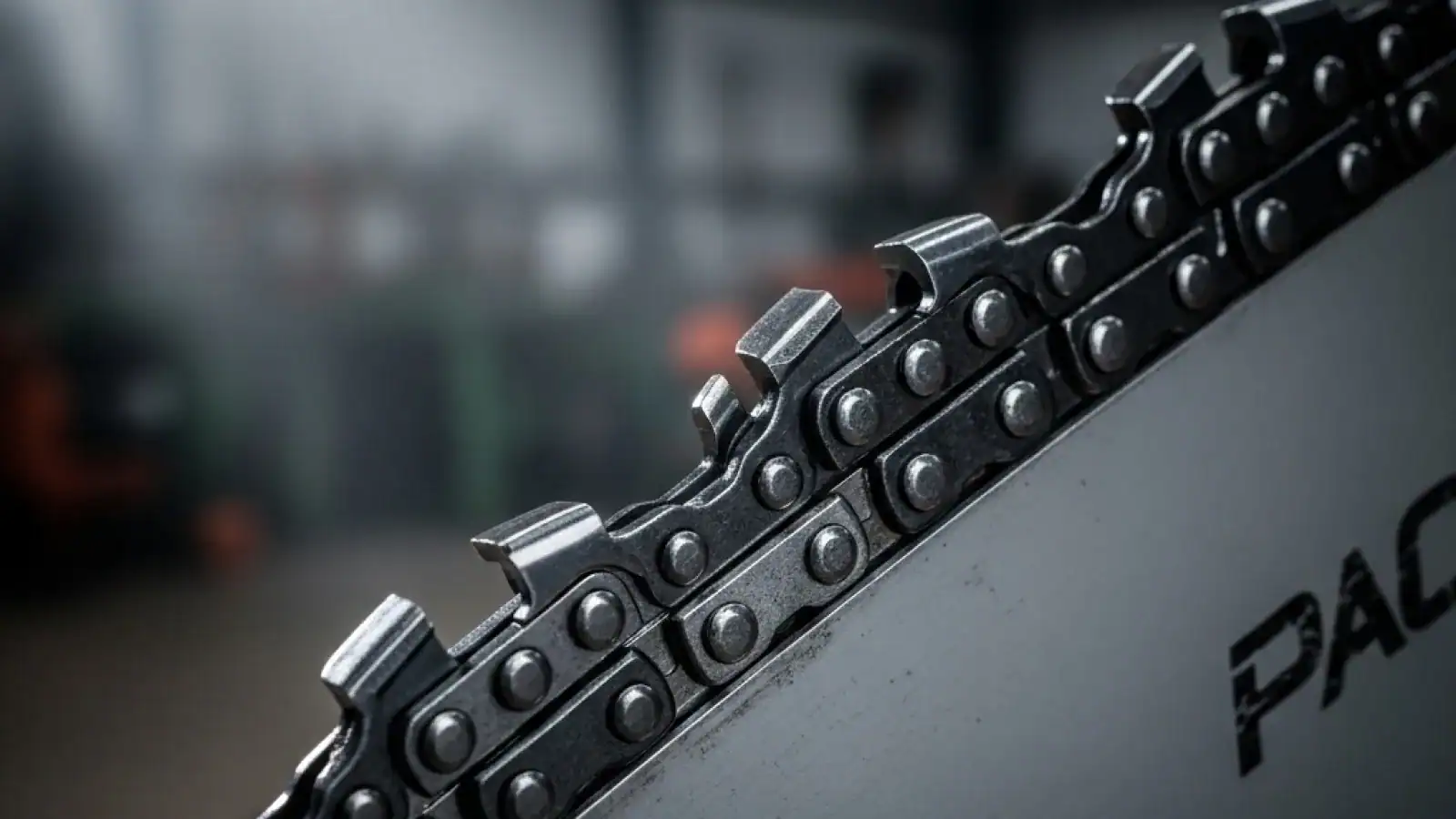

The saw chain is an “endless chain” comprised of repeated links, all held together by rivets.¹ The “chassis” is formed by the essential structural links that run around the guide bar, converting the engine’s power into cutting motion.

The Essential Chassis Components:

1. Drive Links (The Stabilizers): These are the single, tooth-like projections on the underside of the chain.² They are arguably the most crucial part of the chainsaw chain chassis:
   • Function: They fit into the groove of the guide bar for directional stability, engage the drive sprocket, and distribute lubricant.³
   • Key Measurement: The thickness of the drive link is the Gauge, one of the three critical chainsaw chain chassis sizes.⁴
2. Tie Straps (The Connectors): These links sit between the cutting links and the drive links, maintaining the chain’s overall structure and spacing.⁵ They ensure the flexible joint of the chain is strong and reliable under tension.
3. Rivets (The Joints): The small metal pins that hold all the components together, allowing the chain to articulate and bend around the guide bar nose and the drive sprocket.⁶

---

📏 Deciphering Chainsaw Chain Chassis Sizes: Pitch, Gauge, and DL

Compatibility is non-negotiable in chainsaws. Every chainsaw chain chassis replacement requires an exact match of three core measurements to the guide bar and the powerhead sprocket.⁷

1. Pitch (P): The Sprocket Match

The pitch determines the spacing between the drive links and the overall size class of the chain.⁸

• Definition: The distance between the center points of any three consecutive rivets, divided by two.⁹
• Common Sizes:
  • $3/8″ \text{ Low Profile (LP/Picco)}$: Common on homeowner and small saws (under ¹⁰$50 \text{cc}$).¹¹
  • $.325″$: Widely used on mid-range, semi-professional saws ($40 \text{cc}$ to $60 \text{cc}$).
  • $3/8″ \text{ Standard}$: Used on large, professional, high-power saws.¹²
  • $.404″$: Used for high-output milling or harvesting.¹³
• Crucial Rule: The chain’s pitch must perfectly match the pitch of the drive sprocket and the nose sprocket on the guide bar.¹⁴

2. Gauge (G): The Drive Link Thickness

The gauge defines the thickness of the drive links—the actual “chassis” that rides in the bar groove.¹⁵

• Definition: The thickness of the drive link where it sits in the guide bar groove.
• Common Sizes (in inches):
  • $.043″$ (1.1 mm)¹⁶
  • $.050″$ (1.3 mm)¹⁷
  • $.058″$ (1.5 mm)¹⁸
  • $.063″$ (1.6 mm)¹⁹
• Crucial Rule: The chain gauge must exactly match the guide bar groove.²⁰ If it’s too thick, the chain won’t fit; if it’s too thin, the chain will wobble and wear out quickly.²¹

3. Drive Links (DL): The Length Count

The Drive Link count determines the specific length of the chain loop.

• Definition: The total number of drive links that make up the complete loop.
• Crucial Rule: The DL count is unique to the specific bar length and pitch combination. Always count the drive links on your old chain or refer to the guide bar stamping to ensure the correct length for your chainsaw chain chassis replacement.

---

🌲 STIHL Chainsaw Chain Chassis: Decoding the Codes

STIHL chainsaw chain chassis specifications are often represented by a unique three-digit code stamped on the chain’s drive link or on the guide bar. Understanding the Stihl chainsaw chain size chart codes simplifies the process of finding the right chain.

Understanding STIHL’s Chain Codes (General Examples)

STIHL chains are generally categorized into two main families, which speak to the robustness of their chassis:

STIHL Chain Family	Pitch / Gauge	Chassis Profile	Primary Use
Picco (P, PM, PMM)	$3/8″ \text{ Low Profile or } 1/4″$	Narrow Kerf/Slim Chassis	Light duty, homeowner saws, smaller bar lengths. Focus on efficiency and reduced kickback.
Rapid (R, RS, RM, RC)	$.325″ \text{ or } 3/8″ \text{ Standard}$	Standard Kerf/Robust Chassis	Professional, high-power saws. Focus on durability and maximum cutting speed (chipping performance).

Example Code Breakdown (Reference Only): A code like 36RM might signify:

• 36: A specific Pitch/Gauge combination (e.g., $3/8″$ pitch, $0.063″$ gauge).
• RM: Rapid Micro (a specific cutter shape and style of chassis/cutter).

How to Find Your Stihl Chainsaw Chain Size:

1. Check the Guide Bar: Look at the small numbers stamped near the mounting end of the guide bar. These will typically list the Pitch and Gauge.
2. Consult the Manual: Always rely on your saw’s original manual for factory specifications.
3. Use a STIHL Chain Size Chart: Authorized dealers and online vendors provide comprehensive Stihl chainsaw chain size chart guides, cross-referencing your saw model (e.g., MS 250, MS 362) to the exact pitch, gauge, and recommended drive link count.

---

🛒 Purchasing Options: Chainsaw Chain Chassis Replacement and Kits

Whether you need a full assembly or just the chain, there are several options for getting the right chainsaw chain chassis replacement.

Single Chain vs. Chainsaw Chain Chassis Kit

• Single Chain Replacement: This is the most common purchase, assuming your guide bar and sprocket are in good condition. You only need to match the three sizes: Pitch, Gauge, and Drive Links.
• Chainsaw Chain Chassis Kit (Bar and Chain Combo): This option, often marked “Chainsaw chain chassis for sale”, includes a new guide bar and a matched chain. This is recommended when:
  1. The guide bar rail is visibly worn (widened groove).
  2. The nose sprocket on the bar is damaged or frozen.
  3. You wish to change the cutting length of your saw (e.g., swapping a 16-inch bar for an 18-inch bar—this often requires changing the drive sprocket and always changing the Drive Link count).

Cutter Style and Performance

When selecting your replacement chain, you also choose the cutter style:

• Semi-Chisel: Features a rounded corner between the top plate and side plate. Pros: Easier to sharpen, maintains its edge longer in dirty/gritty wood. Cons: Slower cut speed. (Ideal for firewood, dirty wood).
• Full-Chisel: Features a sharp, square corner. Pros: Fastest cut speed, most aggressive. Cons: Dulls quickly if it hits dirt, requires more precise sharpening. (Ideal for clean wood and professional use).

---
